Drilling Tools

Drill pipe specifications
(Click to access the table)

Oil HWDP specifications
(Click to access the table)

Drill collar specifications
(Click to access the table)

Other products
(Click to access the table)

Dimension of Drill Pipe:
SIZE	Nom.Weight	Upset Style	PIPE		TOOL JOINT
			API	FIELDTECH	API SPEC 7			FTDS
					API SPEC 7			FTDS
in	lb/ft				Conn.	OD	ID	Conn.	OD	ID
						Pin and	PIN		Pin and	PIN
						Box(in)	(in)		Box(in)	(in)
2 3/8	6.65	EU	E		NC26	3 3/8	1 3/4	FTDS26 FTDS26SS	3 3/8	1 3/4
			X	FT95SS
			G	FT105SS
2 7/8	10.4	EU	E		NC31	4 1/8	2 1/8	FTDS31 FTDS31SS	4 1/8	2 1/8, 2 1/4
			X	FT95SS		4 1/8	2		4 1/8	2, 2 1/8
			G	FT105SS		4 1/8	2		4 1/8	2, 2 1/8
			S			4 3/8	1 5/8		4 3/8	1 5/8, 2
4 1/2	16.6	IEU	E		NC46	6 1/4	3 1/4	FTDS46 FTDS46SS	6 1/4	3 1/4, 3 1/2
			X	FT95SS		6 1/4	3		6 1/4	3, 3 1/4
			G	FT105SS		6 1/4	3		6 1/4	3, 3 1/4
			S			6 1/4	2 3/4		6 1/4	2 3/4, 3
		EU	E		NC50	6 5/8	3 3/4	FTDS50 FTDS50SS	6 5/8	3 3/4, 4
			X	FT95SS		6 5/8	3 3/4		6 5/8	3 3/4, 4
			G	FT105SS		6 5/8	3 3/4		6 5/8	3 3/4, 4
			S			6 5/8	3 1/2		6 5/8	3 1/2, 3 3/4
	20	IEU	E		NC46	6 1/4	3	FTDS46 FTDS46SS	6 1/4	3, 3 1/4
			X	FT95SS		6 1/4	2 3/4		6 1/4	2 3/4, 3
			G	FT105SS		6 1/4	2 1/2		6 1/4	2 1/2, 2 3/4
			S			6 1/4	2 1/4		6 1/4	2 1/4, 2 1/2
		EU	E		NC50	6 5/8	3 5/8	FTDS50 FTDS50SS	6 5/8	3 5/8, 3 7/8
			X	FT95SS		6 5/8	3 1/2		6 5/8	3 1/2, 3 5/8
			G	FT105SS		6 5/8	3 1/2		6 5/8	3 1/2, 3 5/8
			S			6 5/8	3		6 5/8	3, 3 3/8
5	19.5	IEU	E		NC50	6 5/8	3 3/4	FTDS50 FTDS50SS	6 5/8	3 3/4, 4
			X	FT95SS		6 5/8	3 1/2		6 5/8	3 1/2, 3 3/4
			G	FT105SS		6 5/8	3 1/4		6 5/8	3 1/4, 3 1/2
			S			6 5/8	2 3/4		6 5/8	2 3/4, 3
			E		5 1/2 FH	7	4	FTDS512 FTDS512SS	7	4, 4 1/4
			X	FT95SS		7	3 3/4		7	3 3/4, 4
			G	FT105SS		7 1/4	3 1/2		7 1/4	3 1/2, 3 3/4
			S			7 1/2	3		7 1/2	3, 3 1/2
5	25.6	IEU	E		NC50	6 5/8	3 1/2	FTDS50 FTDS50SS	6 5/8	3 1/2, 3 3/4
			X	FT95SS		6 5/8	3		6 5/8	3, 3 1/2
			G	FT105SS		6 5/8	2 3/4		6 5/8	2 3/4, 3
			E		5 1/2 FH	7	3 1/2	FTDS512 FTDS512SS	7	3 1/2, 3 3/4
			X	FT95SS		7	3 1/2		7	3 1/2, 3 3/4
			G	FT105SS		7 1/4	3 1/2		7 1/4	3 1/2, 3 3/4
			S			7 1/4	3 1/4		7 1/4	3 1/4, 3 1/2
5 1/2	21.9	IEU	E		5 1/2 FH	7	4	FTDS512 FTDS512SS	7	4, 4 1/4
			X	FT95SS		7	3 3/4		7	3 3/4, 4
			G	FT105SS		7 1/4	3 1/2		7 1/4	3 1/2, 3 3/4
			S			7 1/2	3		7 1/2	3, 3 1/2
	24.7	IEU	E		5 1/2 FH	7	4	FTDS512 FTDS512SS	7	4, 4 1/4
			X	FT95SS		7 1/4	3 1/2		7 1/4	3 1/2, 4
			G	FT105SS		7 1/4	3 1/2		7 1/4	3 1/2, 4
			S			7 1/2	3		7 1/2	3, 3 1/2
6 5/8	25.2	IEU	E		6 5/8 FH	8	5	FTDS658 FTDS658SS	8	5, 5 1/4
			X	FT95SS		8	5		8	5, 5 1/4
			G	FT105SS		8 1/4	4 3/4		8 1/4	4 3/4, 5
			S			8 1/2	4 1/4		8 1/2	4 1/4, 4 3/4
	27.7	IEU	E		6 5/8 FH	8	5	FTDS658 FTDS658SS	8	5, 5 1/4
			X	FT95SS		8 1/4	4 3/4		8 1/4	4 3/4, 5
			G	FT105SS		8 1/4	4 3/4		8 1/4	4 3/4, 5
			S			8 1/2	4 1/4		8 1/2	4 1/4, 4 3/4

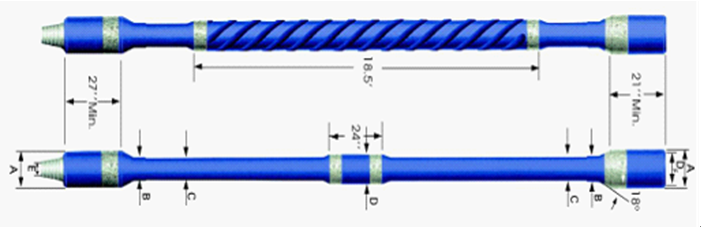

Dimension of HWDP:
OD (inch)	API STANDARD CONNECTION	NON API STANDARD CONNECTION
OD (inch)	API STANDARD CONNECTION	NON API STANDARD CONNECTION
3 1/2	NC38	FTDS38
4	NC40	FTDS40
4 1/2	NC46	FTDS46
5	NC 50	FTDS50
5 1/2	5 1/2FH	FTDS512
6 5/8	6 5/8FH	FTDS658

Dimension of Drill Collar:
OD (inch)	API STANDARD CONNECTION
OD (inch)	API STANDARD CONNECTION
3 1/8	NC23 - 31
3 1/2	NC26 - 35
4 1/8	NC31 - 41
4 3/4	NC35 -47
5	NC34 - 50
6	NC44 - 60
6 1/4	NC44 - 62
6 1/4	NC46 - 62
6 1/2	NC46 - 65
6 3/4	NC46 - 67
7	NC50 - 70
7 1/4	NC50 - 72
7 3/4"	NC56 - 77
8"	NC56 - 80
8-1/4"	6 5/8 REG
9"	NC61 - 90
9 1/2"	7 5/8 REG
9 3/4"	NC70 - 97
10"	NC70 -100
11"	8 5/8 REG
